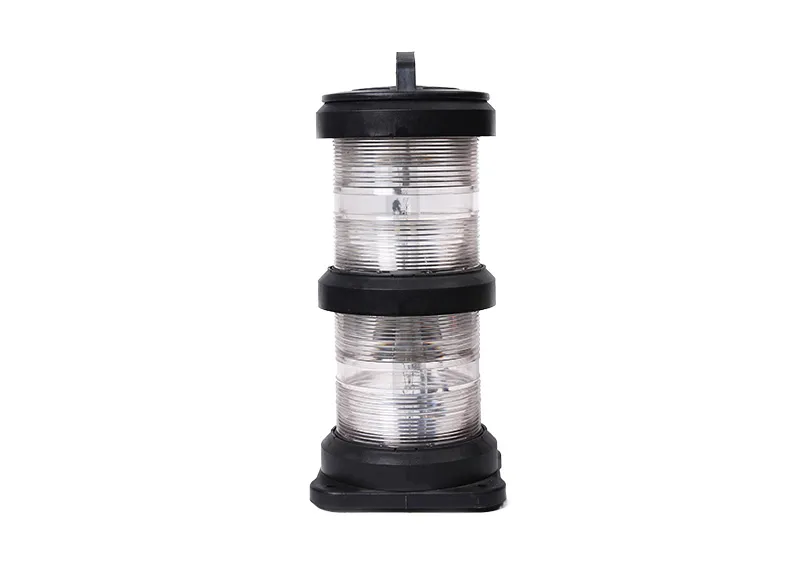

MARINE NAVIGATION SIGNAL LIGHT CXH6-101P-1

Application:For the ship with length 50m or above 50m as signal lights

Model

CXH6-101P

Standard

GB/T 3028-1995

Temperature

-30℃-55℃

Voltage

220V/110V/24V

Power

65W/60W

Download

Product Filter

Navigation Signal Light Marine Fluorescent Light Marine Incandescent Light Flood Light Search Light Explosion Proof Light Marine Electrical Connectors Bulbs and Lamp LifeBuoy Light Accessories

Description

Material: Shell PA+GF /Lamphsade PC

Lampholder: P28S

Color: Transparent, Red, Green

Main Specification

IMPA Code	370422	370423	370421	370424	370426/27/28
Item Name	CXH1-101PL	CXH2-101PL	CXH3-101PL	CXH4-101PL	CXH6-101PL
Item Type	Starboard Light	Port Light	Masthead Light	Stern Light	All-round Light
Visibility	3n.m	3n.m	6n.m	3n.m	3n.m
Level Arc	112.5°	112.5°	225°	135°	360°
Color	Green	Red	White	White/ Yellow	Green/ Red/ White
Power	2*8W	2*8W	2*8W	2*8W	2*8W
Weight	5.2 KGS	5.2 KGS	5.2 KGS	5.2 KGS	5.0 KGS
